A deck that is even slightly out of square causes headaches all the way through the build, from crooked decking boards to railings that do not line up. The 3-4-5 rule is the simple geometry trick professional builders use to guarantee a perfect 90-degree corner before a single board goes down. Here is how it works and how to use it on your own deck.
The rule in one sentence
Measure 3 feet along one side of a corner, 4 feet along the other side, and if the diagonal between those two marks is exactly 5 feet, the corner is perfectly square.
It works because of the Pythagorean theorem: a triangle with sides of 3, 4, and 5 always forms a right angle. You do not need to know the math, just the measurements.

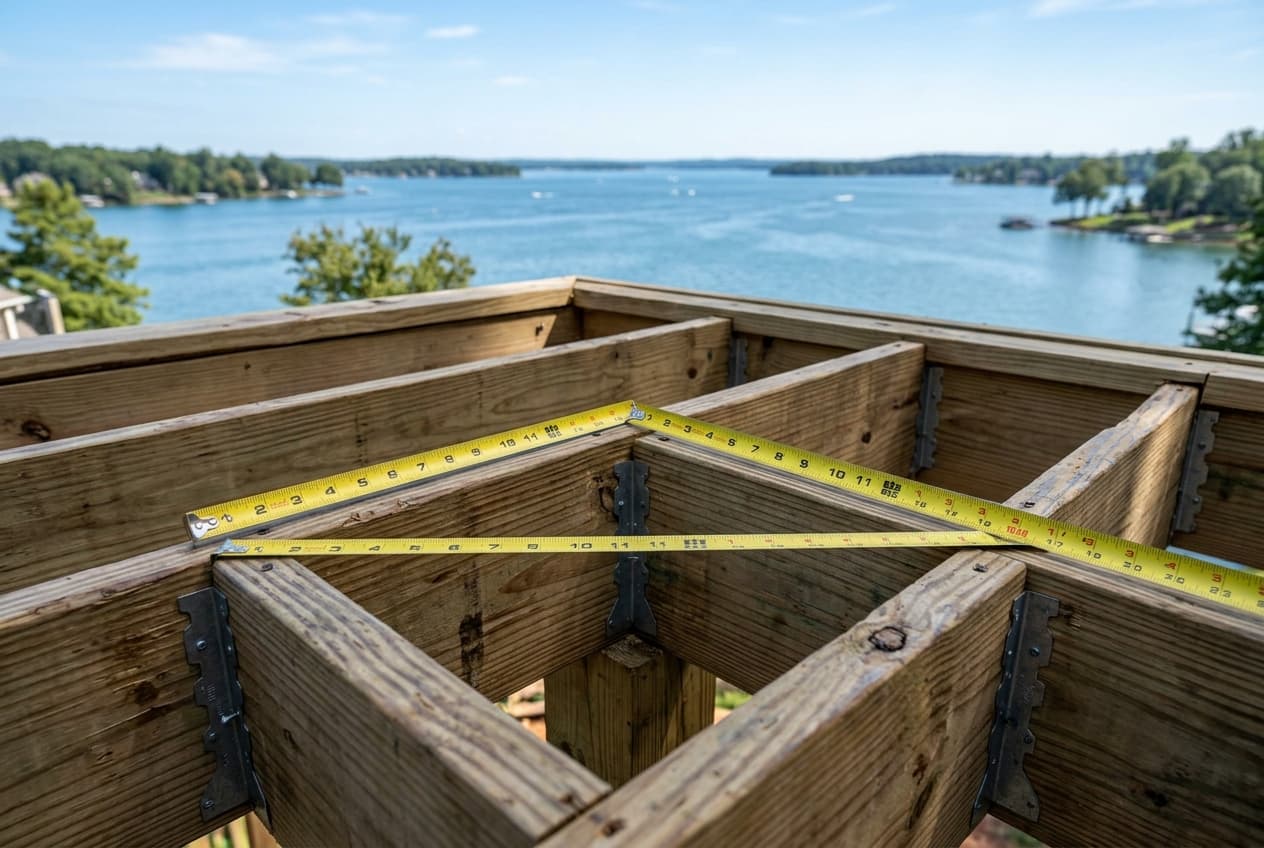

How to use it when framing a deck

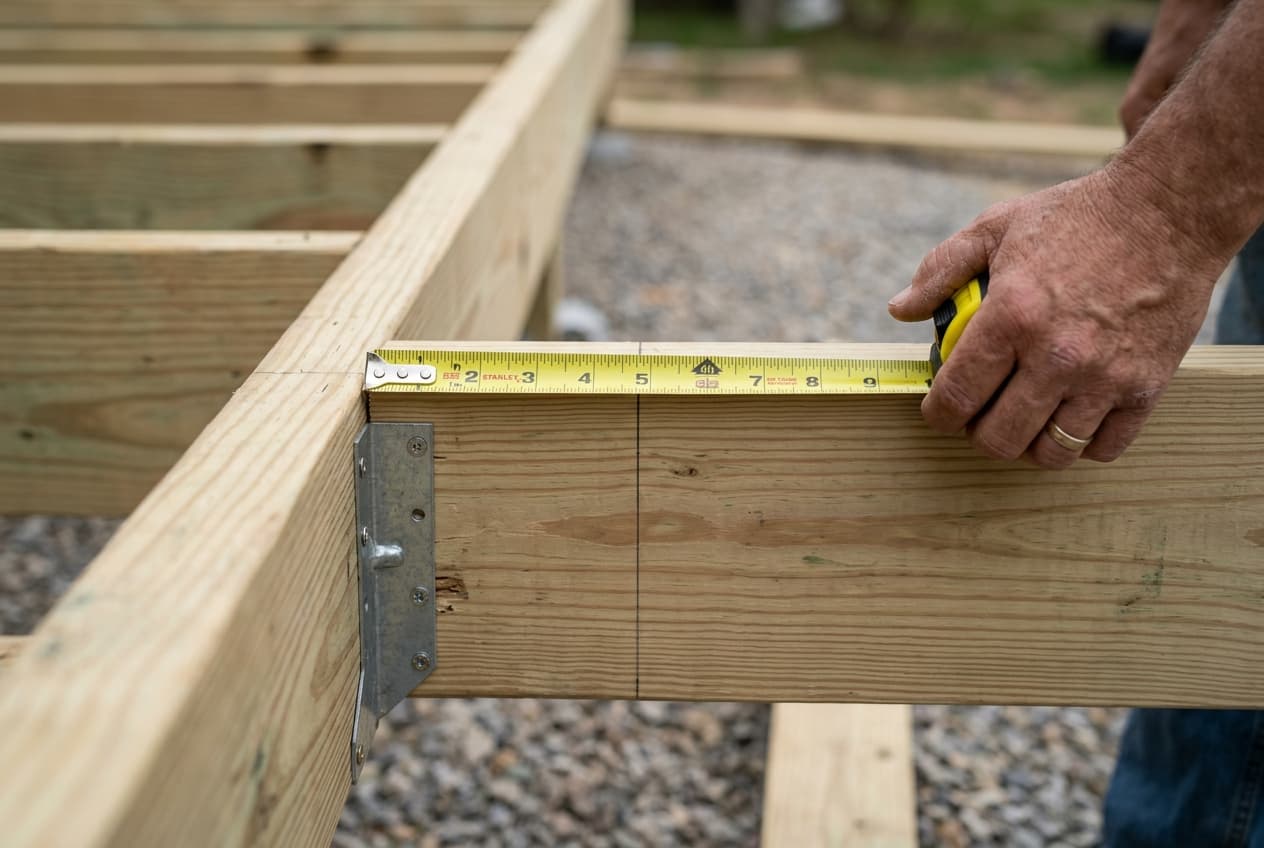

Start at the corner where your ledger board meets the rim joist. Mark 3 feet out along the ledger and 4 feet out along the rim joist. Then measure the diagonal between those two marks.
If it reads exactly 5 feet, your corner is square. If it is short, the corner is too tight; if it is long, the corner is too open. Adjust the framing until the diagonal hits 5 feet, then fasten everything down.
Pro tip: scale it up for bigger decks
On a large deck, use multiples of 3-4-5 for better accuracy, such as 6-8-10 or 9-12-15 feet. The larger the triangle, the more precisely you can dial in a true 90-degree corner.
This is the same method our crews use on every Lakeshore Decks Construction build. Getting the frame square at the start is what makes the finished deck look clean and professional.
Frequently Asked Questions
Why is it called the 3-4-5 rule?
Because a triangle with sides measuring 3, 4, and 5 units always contains a perfect 90-degree angle, which lets you square a corner with just a tape measure.
Can I use other numbers?
Yes. Any multiple works, such as 6-8-10 or 9-12-15. Larger triangles give more accurate results on big decks.
Do I need the 3-4-5 rule if I have a framing square?
A framing square works for small corners, but the 3-4-5 method is far more accurate across the long spans of a full deck frame.
